| Material | PP (Polypropylene) with anti-UV |
| Colour | anthracite |
| Dimensions | approx. 400 x 400 x 50 mm |
| Weight | approx. 0,7 kg |
| UV-resistant | yes |
| Side wall | With inlet slits 3 mm, with connection possibilities for drainage pipes |
| Reinforcement | Base plate as reinforcement for the extension of the elements |
| Properties | Elements can be stacked up to approx. 100 cm |
| Work instruction | Side wall can be clicked in |
| Packaging | 370 x 320 x 390 mm cardboard box |
| Quantity | One cardboard box contains 13 pieces of extensions, consisting of a base plate as reinforcement and 4 side walls |
| Weight per cardboard box | approx. 10 kg |
| Storage | Dry |
Alongside stand-alone products, it’s our system solutions combined with standard products that meet all complex demands and ensure the process is easy.
Discover the advantages of our green roof system solutions:

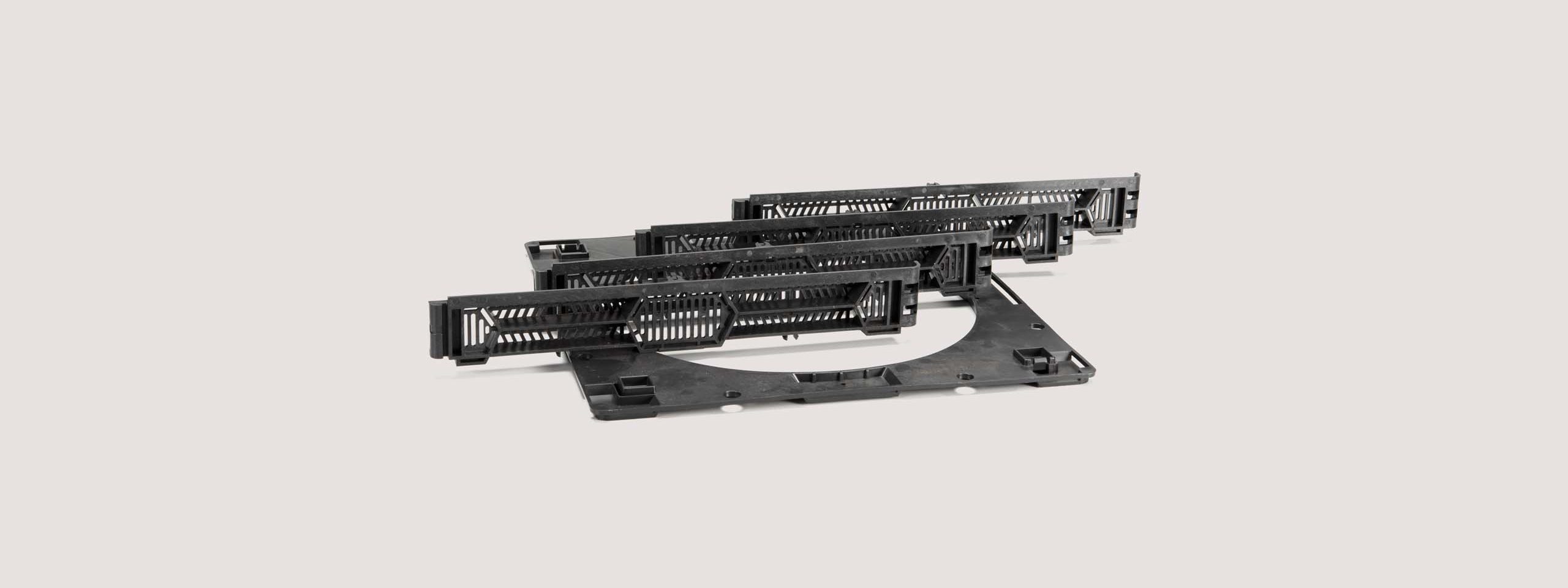

ClimaGruen chamber elevation 40 CG-KSE 5 as extension element for the inspection chambers CG-KS 40 h5 / CG-KS 40 h10, with the following features:
Material PP (polypropylene), colour anthracite, dimensions approx. 400 x 400 x 50 mm, weight approx. 0,7 kg, UV-resistant, side wall with inlet slots 3 mm, with connection options for drainage pipes, reinforcement with base plate for raising the elements, supply and install professionally.
© ClimaGrün GmbH - Subject to change, typos and printing errors, version: 11 October 2022
